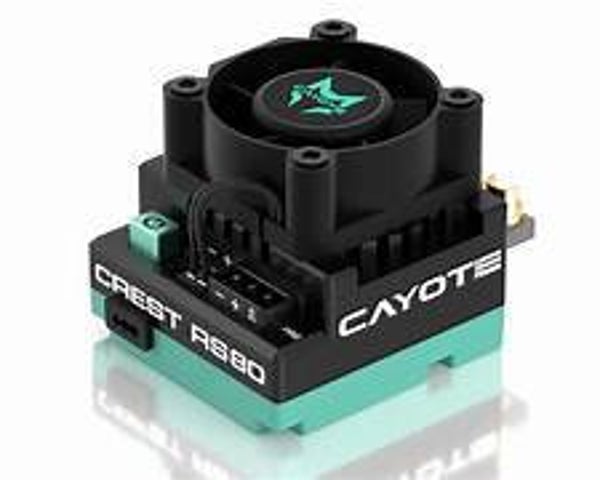

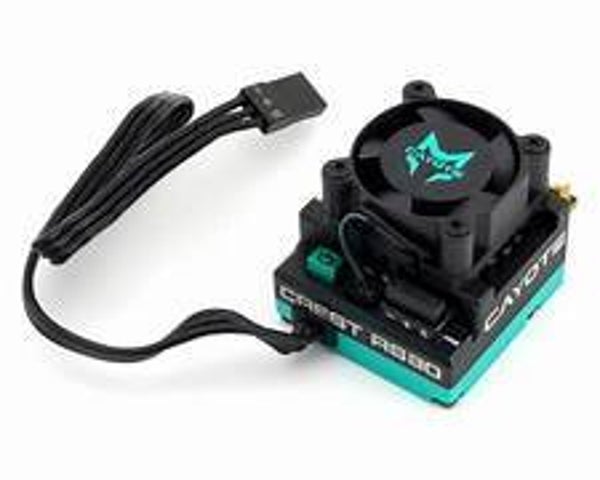

CAYOTE CREST RS80 Sensored Brushless ESC.
Team Cayote CREST RS60&80 info
1.Feature content:
Team Cayote CREST RS60 & CREST RS80 ESC series – the ideal Family Twins for Racing and/or Bashing
The CREST RS60 and CREST RS80 are both high-quality ESCs designed for 1/10 scale use. Whether competing in 1/10 Electric Touring (On-road), 1/10 Off-road STOCK races, or 1/10 Drift Car, these ESCs provide exceptional performance and reliability.
Both ESCs feature advanced competition racing-tested and developed technology, offering smoother throttle responses and efficient heat dissipation in a comfortable price package. CREST RS60 and CREST RS80 will help you push limits and driving experiences to higher levels.
CREST RS - 60 & CREST RS - 80 - Reverse Polarity Protection
To enhance reliability, the CREST RS60 and RS80 are equipped with reverse polarity protection circuitry, reducing worries about damaging the ESC due to incorrect battery polarity connectivity, a common fault issue.
Whether installing or replacing the battery in a hurry, we ensure peace of mind at all times and conditions.

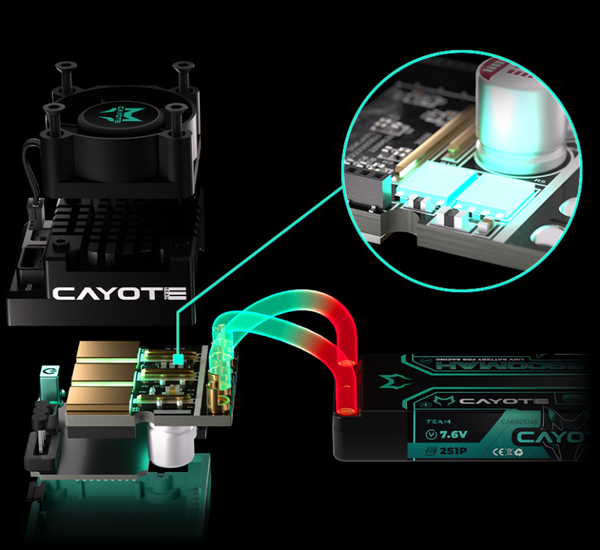

Built-in Capacitor, Optimized Layout
Both CREST RS60 & CREST RS80 ESCs feature a built-in capacitor module, eliminating the need for those rough and sensitive external capacitors. This design also simplifies wiring and saves valuable chassis space. It not only creates a cleaner, more compact setup but also reduces potential interference from improper external soldering connections, thereby enhancing overall stability and performance.
Built-in Data Logging Function
The CREST RS60 & CREST RS80 ESCs include Team Cayote's in-house developed APP data logging functions, allowing you to monitor the internal performances of your ESC and connected power systems. The data includes monitoring of: battery voltage, ESC and motor temperatures, motor RPM, and more. All this data can be accessed and viewed through the Team Cayote APP for convenient tracking and analysis.
Multiple RPM Limiting Stages, Selectable as Needed
The CREST RS60 & CREST RS80 ESCs feature adjustable RPM limit functions, allowing you to select the desired RPM range based on your or the racing event needs. The RPM can be adjusted from 10K to 88K RPM, with 1K RPM increments.
2. CREST RS60&80 Spec
Model: CREST RS60
Continuous/Peak Current: 60A / 380A
Supported Motor Type: Sensored and Sensorless Brushless Motor
Suggested Application: Stock Class of 1/10th Touring Car & Buggy
Motors Supported: ≥10.5T 3650 Size Motors
Number of Battery Cells: 2S LiPo
BEC Output: Ultra-stable switch V regulation 6V/7.4V; continuous current 4A / peak 5A
Fan Power: Obtain a stable 6V/7.4V from the built-in BEC
Dimensions/Weight: 37.8 (L) * 32 (W) * 28.5 (H) mm / 45g
Parameter Setting Method: Xlink Programming Box / APP
Model: CREST RS80
Continuous/Peak Current: 80A / 400A
Supported Motor Type: Sensored and Sensorless Brushless Motor
Suggested Application: Stock Class of 1/10th Touring Car & Buggy
Motors Supported: ≥10.5T 3650 Size Motors
Number of Battery Cells: 2S LiPo
BEC Output: Ultra-stable switch V regulation 6V/7.4V; continuous current 4A / peak 5A
Fan Power: Obtain a stable 6V/7.4V from the built-in BEC
Dimensions/Weight: 37.8(L) * 32(W) * 28.5(H) mm / 45g
Parameter Setting Method: Xlink Programming Box / APP
3. Suggestion Application
- Blinky
Suitable for STOCK racing that requires ESCs to use a zero-timing blinking light program. - 1/10 Off-Road
Suitable for 1/10 off-road/truck racing. - 1/10 On-Road
Suitable for 1/10 on-road racing.
Compatibility
This product is fully compatible with our Xlink program box, Cayote Team App
