CAYOTE Racing ESC CREST X Evo

Sold out

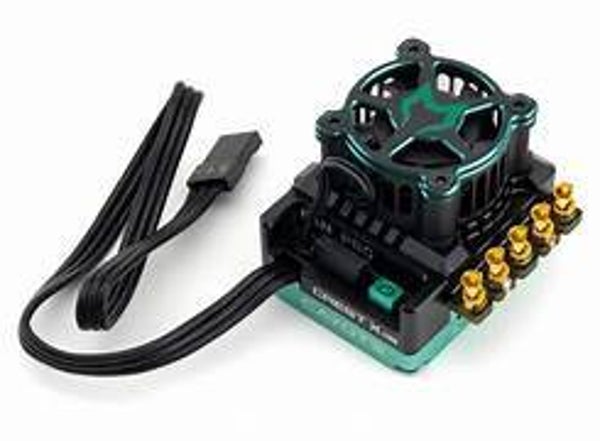

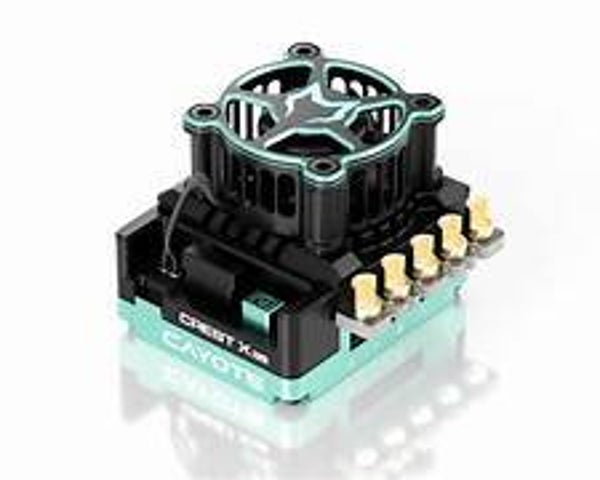

CAYOTE Racing ESC CREST X Evo
A$349.99

CAYOTE RACING ESC CREST X EVO (CYEA11005)

Exceptional Performance
and Processor Computing Power

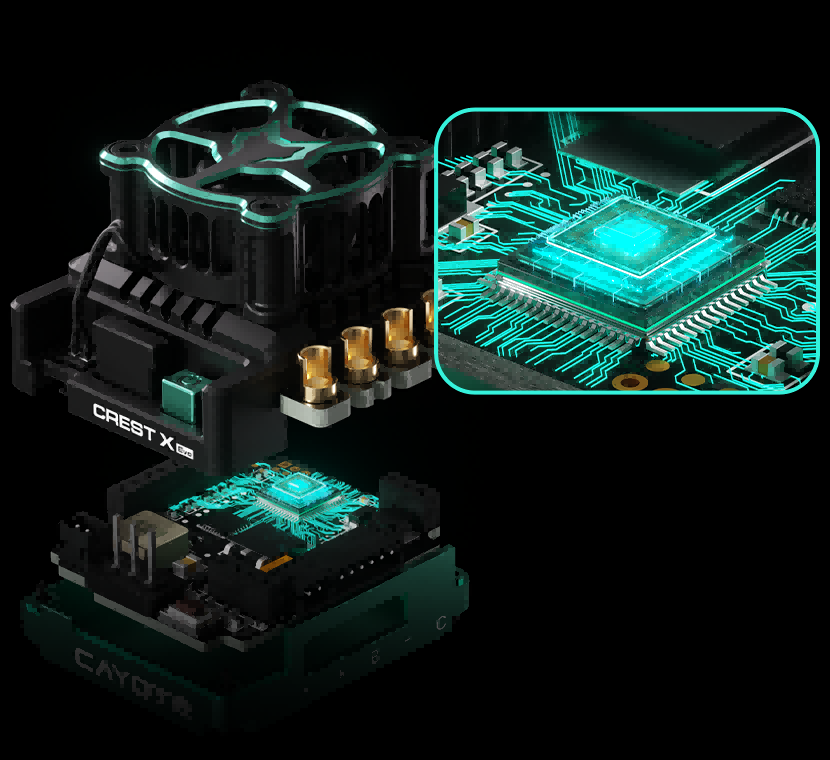

The CREST X EVO is equipped with a high-performance ARM architecture, featuring a 32-bit Cortex-M4 core processor with a clock speed of up to 108MHz.

Compared to the CREST X   the EVO can therefore achieve a 5 times higher computing power, enabling faster processing of complex calculations and therefore increasing acceleration and braking performance. This significant performance boost ensures stronger ability for high-speed response and multi-task controls, as well provides enhanced reliability and precision in high demand power applications.

CREST X EVO is connected to the BTUNE module, a wireless connection can be established between your mobile device and the ESC. This allows for easy parameter adjustment, data reading, and firmware updates via the mobile app—convenient and user-friendly.

With up to 64 degrees of Boost and Turbo timing, the all new EVO delivers instant acceleration, making every launch lightning-fast and providing unmatched power support. Compared to the previous CREST X model, the EVO features superior processing speed, finer control, and enhanced burst performance.

The Crest X EVO offers a highly APP customizable experience with its adjustable PWM frequency for both throttle and brake. This feature allows users to fine-tune the throttle response and braking power to meet specific driving preferences and track conditions in even the smallest details, as well optimizing setup functionality.



Compatibility

  • Motor: 1/10th TC≥4.5T；1/10th Off Road≥5.5T
  • Motor Mode: Sensored and Sensorless Brushless Motors
  • Battery: 2S LiPo



Wire Gauge

  • Output Wires: Black-13AWG-180MM*3
  • Input Wires: Red-13AWG-180MM*1
    Black-13AWG-180MM*1



ESC Programming Via

  • Xlink Program Box Compatible
  • B-Tune Connect (Optional)
  • Internal Program (Port)(APP Control)
