CAYOTE Racing ESC CREST 8 Evo

Sold out
CAYOTE Racing ESC CREST 8 Evo
A$359.99

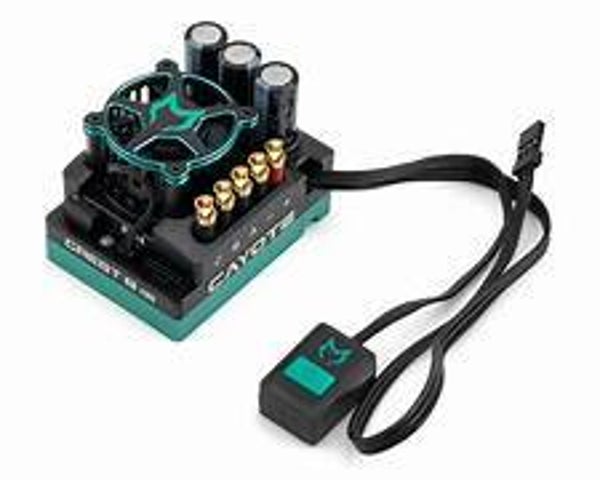

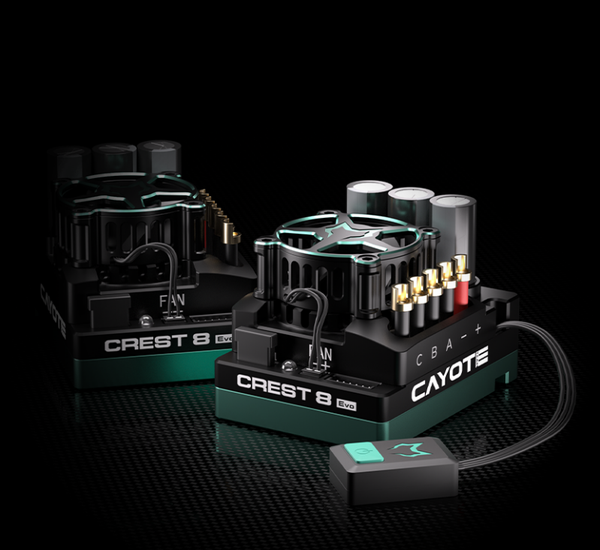

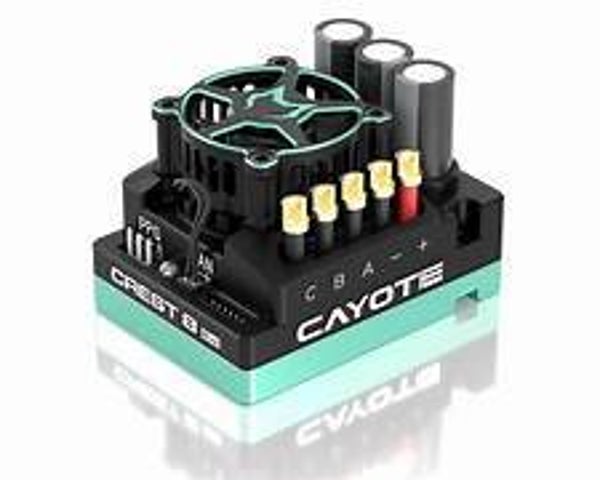

Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC w/ Bluetooth

Bluetooth ESC Designed for Ultimate Performance

The Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC is designed for serious 1/8-scale racers seeking precise throttle control, reliability, and maximum power. Delivering up to 10% more peak power, the Crest 8 EVO features advanced motor timing, built-in Bluetooth connectivity, and comprehensive protection systems to perform consistently under demanding race conditions. Reverse polarity protection helps prevent installation errors, while an efficient cooling design ensures stable performance throughout long mains and high-load runs.

Powerful Boost & Turbo Timing

With an expanded 48° boost and turbo timing range, the Crest 8 EVO maximizes acceleration and top-end speed while maintaining smooth, predictable power delivery. Fine timing control improves motor efficiency and stability, making it ideal for competitive racing environments.

Bluetooth Tuning & Data Logging

Integrated Bluetooth allows wireless programming and monitoring through the Cayote Team App. The Crest 8 EVO also supports offline data recording, enabling drivers to review performance data and fine-tune their setup. Data can be accessed via the app or the optional Cayote Xlink Multifunction LCD Program Box (CYECPB01, sold separately).

Advanced Protection & Extensive Tuning

Featuring over 37 adjustable parameters, the Crest 8 EVO provides extensive tuning flexibility for different track conditions and driving styles. Multiple protection functions—including low-voltage cutoff and motor over-temperature protection—help safeguard electronics, while built-in reverse polarity protection adds peace of mind during installation.

Features

  • Built-in Bluetooth compatibility with the Cayote Team App

  • Up to 10% more peak power

  • Offline data logging

  • Reverse polarity protection

  • 32-bit ARM Cortex-M4 processor

  • Up to 108MHz clock speed

  • Adjustable drag brake (1–20 levels)

  • Multiple electronic protection functions

  • Optional RPM limiting (10,000–88,000 RPM)

  • Selectable throttle midpoint: 4%, 6%, 8%, or 10%

Specifications

  • Application: 1/8 Buggy, Truggy & Truck

  • Motor Type: Brushless (Sensored / Sensorless)

  • Input Voltage: 2–4S LiPo (7.4–14.8V)

  • Continuous Current: 200A

  • Peak Current: 1080A

  • Dimensions (L×W×H): 2.24 × 1.64 × 1.57 in (56.8 × 41.6 × 40mm)

  • Weight: 4.3 oz (122g)

  • Motor Limit: 4268 / 4274 up to 3000kV on 4S LiPo

  • BEC Voltage: 6.0V / 7.4V selectable

  • BEC Current: 8A continuous / 12A peak

  • Motor Connector: Solder

  • Battery Connector: Solder

  • Motor Wire: 10AWG

  • Battery Wire: 13AWG

  • Programmable: Yes, via Cayote Team App or Xlink Program Box
